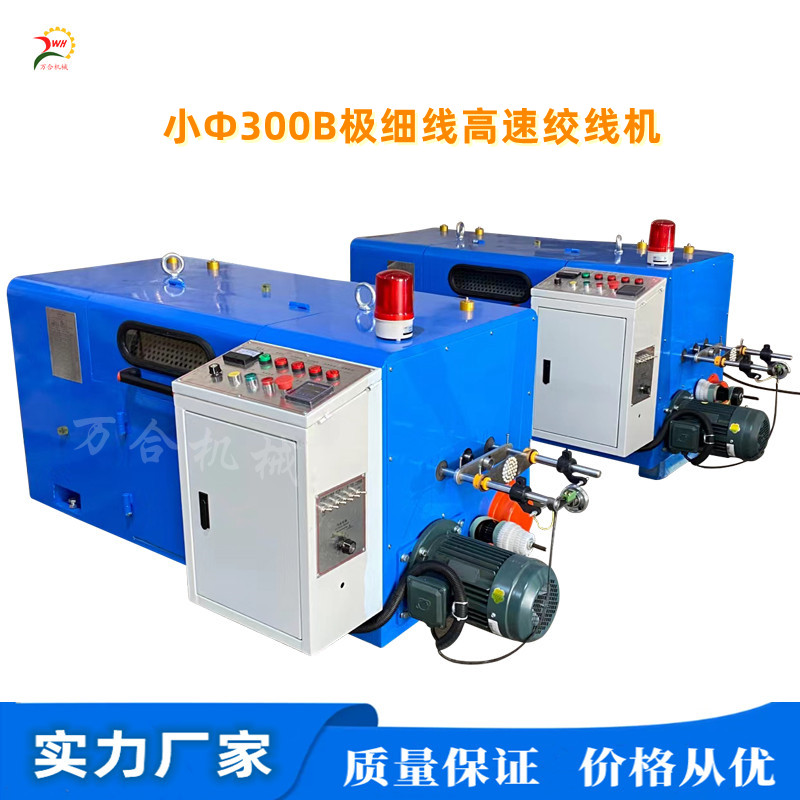

    小Φ300B極細線專用高速絞線機

    小Φ300B極細線專用高速絞線機

    13829120479
    產品詳情

    Φ200~Φ300B極細線高速絞線機

    Φ200~小Φ300B ultra-fine wire high-speed stranding machine


    一、用途Application

    適用于軟/硬導體線、電子線的絞合。如:裸銅線、漆包線、鍍錫線、銅包鋁、合金線;電源線、電話線、音頻線、視頻線、汽車線、網絡(luò )線等。

    Full automatic double-twist type wire twist machine, strengthening design of the traction system, can twist 0.45mm2 copper wire, it can also apply on the core wire pair twisted or small core wire cabling.

    二、技術參數Technical Parameters

    Model

    WH-HST-200

    5000RPM/min

    WH-HST-250

    4000RPM/min

    WH-HST-300

    3000RPM/min

    單根線徑

    Diameter of each wire

    Φ0.016~0.12

    Φ0.03~0.16

    ?0.05~0.28mm

    絞合截面積

    Stranded cross-sectional area

    0.0014~0.0035mm2

    0.005~0.3mm2

    0.035~0.45mm2



    Twist pitch range

    0.92~11.83

    0.80~10.60

    1.3317.57mm

    驅動馬達

    Drive motor

    3HP Motor+

    Frequency adjust speed

    5HP Motor+

    Frequency adjust speed

    5HP Motor+

    Frequency adjust speed

    線盤裝銅量

    Weight   of conductor on reel

    20

    20

    30

    機械尺寸㎜

    Mechanical Dimensions

    L1800×W750×H845

    L1800×W750×H850

    L1900×W750×H950

    機械重量

    Machine net weight

    700

    750

    800

    Twisting direction

    “S”   or “Z” direction

    使用電源

    Voltage frequency

    50HZ/380V(三相五線Three-phase   five-wire

    排線裝置

    Cable device

    加強型精密光桿排線器,排輻、排距均可調整

    Enhanced   polished rod cable arranging device, row spacing and row width can be   adjusted at will

    收線張力

    Take-up tension

    磁粉離合器控制張力、大小可調節,被拉線不變型。

    The   magnetic powder clutch controls the tension, the size can be adjusted, and   the drawn wire does not change shape.

    保護功能

    Protective function

    ⑴長度到達設定參數自動停機

    The length meter will automatically stop   when it reaches the set parameters;

    ⑵設備內部和外部斷線,自動停機報警The   internal and external disconnection of the equipment will automatically stop   and alarm;

    ⑶安全罩打開自動停機

    It   will stop automatically when the lift is incorrect

    ⑷升降不正確自動停機

    It   will stop automatically when the safety cover is opened。

    ⑸紅色警示燈:故障停機

    Red   warning light: shutdown due to failure
